Transformers from DEKOR™ are simply the top of the line and are specifically designed to our exacting standards for use with DEKOR™ products. The transformers are so robust in design that we offer an unprecedented 3 year warranty.
Using a DEKOR™ transformer allows us to provide you with the industry leading warranty on our LED lights. Conversely, DEKOR™ lights are designed to be used with DEKOR™ transformers and when another transformer is used in place of one of our transformers this voids the LED warranty in its entirety.
Dekor transformers:
-
EZMAX Highlights
- Indoor or Outdoor Use
- Waterproof
- Impervious to the elements
- Offers more power then the EZ
- 3 year Warranty
-
Accessories for this Product
- EZDIMMER
- EZSWITCH
- EZTIMER
- Wire & Wire Nuts

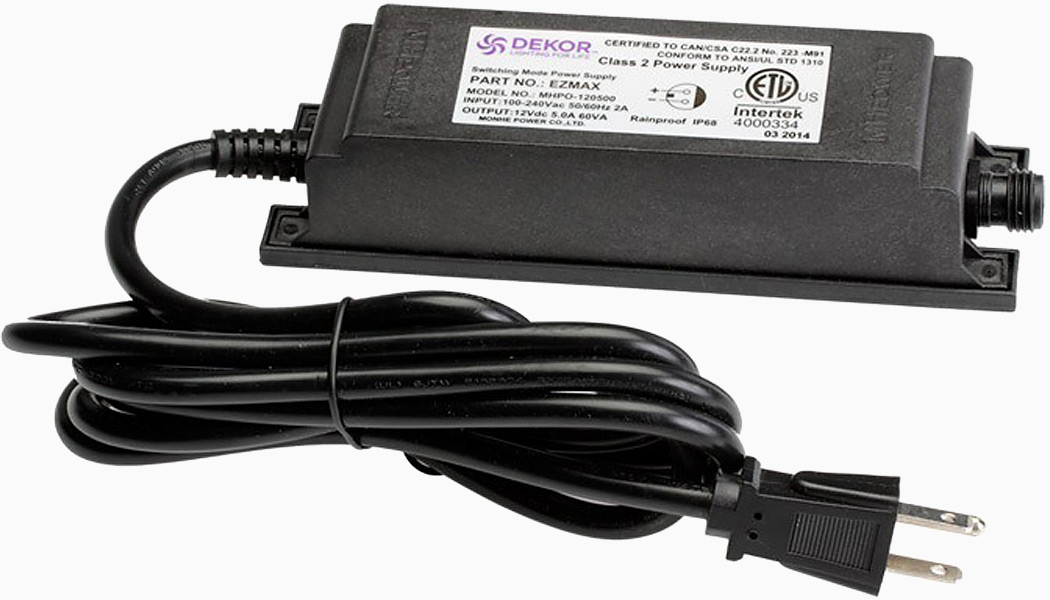

The EZMAX Transformer is used for either indoor or outdoor applications. This transformer is for those larger projects or substantial wire runs requiring more power. And yet it is housed in a very small package. Install the transformer outside with confidence as the unit is waterproof and impervious to the elements.
Mounting is simple and effortless. The transformer is designed to be used with DEKOR’s remote dimmer or remote switch or both. Input voltage allows for US and Canadian usage and other countries where 100 vac is used.
Specifications:
Input Voltage: |
120 vac |
Input Frequency: |
60 Hz |
Output Current: |
5 amp |
Output Power: |
60 watt |
Ouput voltage: |
12 vdc regulated |
Protection: |
short circuit, overload, over voltage, thermal |
|
Dimensions: |
W 2.3” x H 2.6” x L 6.9” |
Power Rating: |
Class II (U.L. 1585) |
IP rating: |
66 (waterproof) |
Approvals: |
UL, CSUL, RoHS |
MTBF: (mean time between failure) |
> 50,000 hours |
|
The following limitations apply to the Dekor warranty:
- Dekor illuminated products are only warranted when used exclusively with Dekor transformers.
- Use of a dimmer switch on the input side of the transformer will void the warranty. Contact Dekor directly for information on dimming instructions.
Please see additional shipping information below.
