EZ Waterproof 12V Dimmer With Remote by Dekor Deck Lighting

QUANTITY* * required field
Price reflects options chosen above
The final product price may change based on the combination of size / type / finish / style you choose.
$116.13

LED Controllers from DEKOR™ are simply the top of the line and are specifically designed to our exacting standards for use with DEKOR™ products. Our dimmers, switches, and timers offer control and convenience. Create ambiance, save energy, and increase the lifespan of your DEKOR™ LED lights. DEKOR™ is an ENERGY STAR PARTNER.

We offer three types of controllers: the EZDIMMERWP for dimming of LEDs, the EZSWITCH for remotely turning the circuit on or off and finally the EZTIMER outdoor dusk-dawn-timer.  They have been designed for ease of operation and to be used individually or together to give you the control and flexibility you desire.

These controllers are designed to be used with DEKOR™ Transformers. When other transformers are used in place of DEKOR™ transformers, this voids the controller warranty in its entirety.

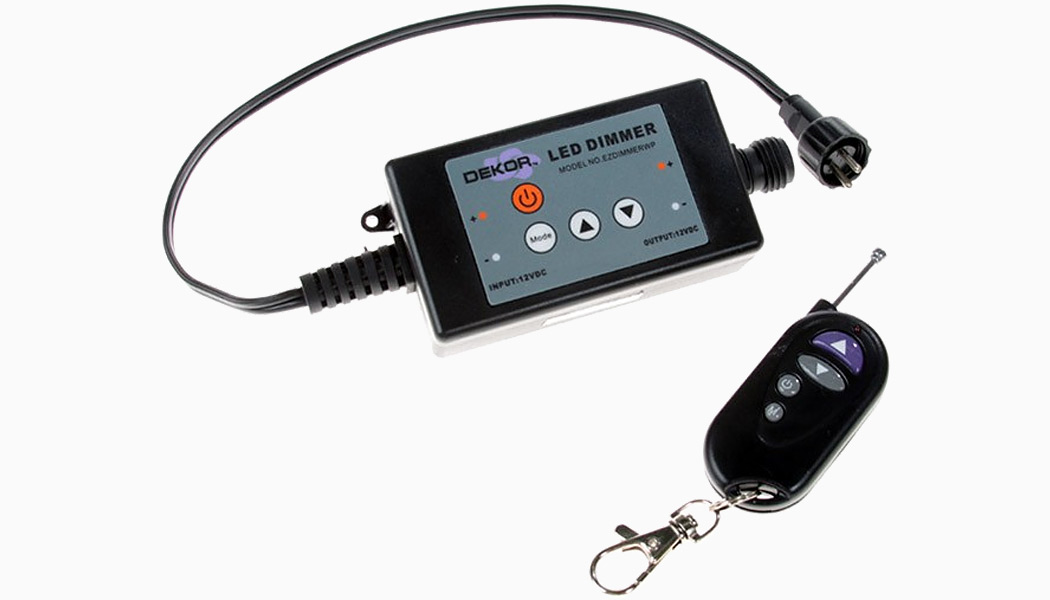

The EZ Dimmer is designed to dim your project lighting. It can be operated by either the remote which is provided with unit or by pressing the dimming buttons on the unit. The remote control has a range of 30 feet from the base unit with replacement batteries readily available at most department stores.

Wiring of the unit is simple. Just strip the transformer output leads and place in the + - contacts located on the input side of the controller. Wires that feed your lights are placed in the output + - contacts of the controller.

  • Waterproof housing and connectors for outdoor use
  • Adjust color from base unit or using remote
  • Full control of light intensity
  • Remote controlled
  • 70 ft range (with new battery)
  • Teachable base unit in the event of remote loss
  • Higher Input current (10 amp) can be used with any DEKOR Transformer
  • Small Footprint
  • 1 year Warranty



Input Voltage 120 vac
Input Frequency 60 Hz
Output Current 5 amp
Ouput voltage 12-0 vdc regulated
Dimensions W 2.3” x  H 1.6” x  L 4.5”
Connectors Spring Clamp
Controls Dimming button, Brighten button
Approvals UL, CSUL, CE, RoHS

Remote Dimmer Specs

Type Key Chain RF
Remote Range 70'
Control Range Zero - Full Intensity

Channel Single
Controls Dimming button, Brighten button
Battery 12v model 27a (included)

Please see additional shipping information below.
